Products > Voice > Nortel

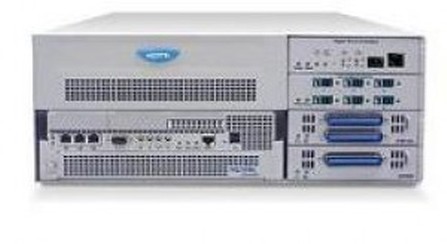

Nortel BCM 450 5.0 Standard Base System (NTC03100SXE6)

The BCM 450 Main Unit is the primary hardware component for the BCM system. It provides the call processing functions, connections for auxiliary equipment, and slots for Media Bay Modules.

BCM 450 Main Unit Features

4 slots to accommodate Media Bay Modules

1 OAM port used for direct connection of a computer running administration software such as Element Manager

2 LAN ports

2 USB 2.0 ports to connect USB storage devices

1 DS256 jack to connect a BCM expansion cabinet

Auxiliary ringer jack, page relay jack, page output port

Music on hold port

Compatibility

4x16 Combo, 8x16 Combo, ADID4 and ADID8, ASM8+, CTM4 and CTM8, DTM, BRI, DSM16+ and DSM32+, GATM4 and GATM8, GASM8, R2MFC, FEM
