| Norstar Fiber Trunk Module (12x0) - (NTBB20FB) The Norstar Fiber Trunk Module will provide users with 3 expansion slots for trunk cartridges - fiber cable and mounting bracket included. | Norstar 12x0 Features
- Add up to 3 more trunk cartridges - Provides 3 additional slots that support all analog trunk cartridges - LS/DS, CI, DID, and E&M
- Emergency transfer port - Provides on emergency transfer port for power outages
- ISDN-BRI - ISDN BRI cards are supported on Trunk Modules 3 and 4 (2-port expansion) or Trunk Modules 7 and 8 (6 or 12-port expansion)
- T1/PRI - Digital trunk interface (DTI) cartridges are supported in slot 1 of first 12x0 Fiber Trunk Module in MICS 5.0 or higher
Compatibility - The Norstar M12X0 Fiber Trunk Module is compatible with all releases of Norstar Modular ICS
- To add the Norstar M12X0 Fiber Trunk Module to your Norstar Modular ICS main cabinet, you will need one of the following fiber expansion cartridges:
- a) 2-Port Fiber Expansion Cartridge
- b) 6-Port Fiber Expansion Cartridge
- c) 6-Port Combination Fiber Services Cartridge
|
| Norstar M0X16 Fiber Station Module (NTBB41FB-93)
The Norstar M0X16 Fiber Station Module adds 16 additional digital station ports to your Norstar Modular ICS main cabinet. | Norstar M0X16 Features - 16 digital station ports - Allows you to add up to sixteen additional M7000 or T7000 series telephones to your Norstar MICS main cabinet
- Includes Norstar M0X16 Fiber Station Module and Mounting bracket
Compatibility - The Norstar M0X16 Fiber Station Module is compatible with all releases of Norstar Modular ICS
- To add the Norstar M0X16 Fiber Station Module to your Norstar Modular ICS main cabinet, you will need one of the following fiber expansion cartridges:
- a) 2-Port Fiber Expansion Cartridge
- b) 6-Port Fiber Expansion Cartridge
- c) 6-Port Combination Fiber Services Cartridge
|

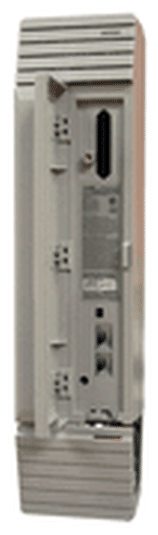

| Norstar M0X8A Analog Station Module - ASM (NTBB51CA-93) The Norstar M0X8AM Analog Station Module adds 8 additional analog station ports to your Norstar Modular ICS main cabinet.
| Norstar M0X8A ASM Features - 8 analog station ports - Supports up to 8 analog devices (data or voice - e.g. single line telephones, fax machines, modems, answering machines) with speeds up to 33.6 Kbps
- 2 DS-30 fiber ports - A maximum of two ASMs, providing a total of 16 analog ports, can be connected through a single DS-30 port. The total number of ASMs that can be installed on a system is determined by the available DS-30 ports on the MICS core.
- DS-30 Fiber Port 1 - Used to connect to the Norstar MICS main cabinet equipped with a fiber expansion cartridge
- DS-30 Fiber Port 2 - Used for daisy-chaining a second M0X8A analog station module
- Includes Norstar M0X8A Analog Station Module (ASM), Fiber cable assembly, and Mounting bracket
Compatibility - The Norstar M0X8A Analog Station Module is compatible with all releases of Norstar Modular ICS
- To add the Norstar M0X8A Analog Station Module to your Norstar Modular ICS main cabinet, you will need one of the following fiber expansion cartridges:
a) 2-Port Fiber Expansion Cartridge b) 6-Port Fiber Expansion Cartridge c) 6-Port Combination Fiber Services Cartridge |
