Products > Security > Fire Protection

Addressable Fire Alarm Control Panel SIGA2-HFS Intelligent Fixed-Temperature Heat Detector Intelligent Heat Detectors with Optional CO Sensors Horns and Strobes Manual Pull Stations ANN-80 Serial Annunciator

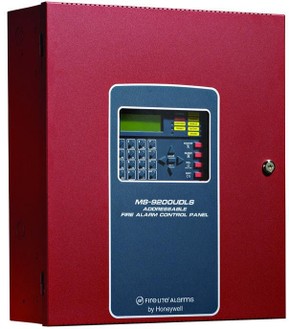

MS-9200UDLS(E) Rev 3 Intelligent Addressable FACP with Built-In Communicator	General The Fire•Lite MS-9200UDLS Rev 3 with Version 5.0 firmware is a combination FACP (Fire Alarm Control Panel) and DACT (Digital Alarm Communicator/Transmitter) all on one circuit board. This compact intelligent addressable control panel has an extensive list of powerful features. While the MS-9200UDLS Rev 3 may be used with an SLC configured in the CLIP (Classic Loop Interface Protocol) mode, it can also operate in LiteSpeed™ mode—Fire•Lite’s latest polling technology—for a quicker device response time. LiteSpeed’s patented technology polls 10 devices at a time. This improvement allows a fully-loaded panel with up to 198 devices to report an incident and activate the notification circuits in under 10 seconds. With Litespeed polling, devices can be wired on standard twisted, unshielded wire up to a distance of 10,000 feet. The MS-9200UDLS Rev 3’s quick-remove chassis protects the electronics during construction. The backbox can be installed allowing field wiring to be pulled. When construction is completed, the electronics can be quickly installed with just two bolts.	New features for Rev 3 with Version 5.0 firmware include removable terminal blocks, improved transient protection, additional secondary ANN-BUS, and increased power for the resettable and remote sync outputs. Available accessories include ANN-BUS devices as well as ACS LED, graphic and LCD annunciators, and reverse polarity/ city box transmitter.
Click Here For Datasheet

SIGA2-HFS Intelligent Fixed-Temperature Heat Detector	Description The Signature Series model SIGA2-HFS Intelligent Fixed-Temperature Heat Detector is an intelligent device that contains a fixed-temperature heat sensor to detect heat from fire. The heat sensor monitors the temperature of the air in its surroundings and the detector analyzes the data and determines whether to initiate an alarm.	LED indicator. The LED indicator (see Figure 1 below) displays the following states: • Normal: Green LED indicator flashes, no action. • Alarm/active: Red LED indicator flashes, evacuate the area. • Stand-alone alarm: Red LED indicator turns on, evacuate the area.
Click Here For Datasheet

Intelligent Heat Detectors with Optional CO Sensors SIGA2-HFS, SIGA2-HRS, SIGA2-HCOS	Overview Signature Series fixed temperature and rate-of-rise heat detectors bring advanced sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while the latest thermister technology makes these detectors ideal wherever dependable heat detection is required. With their modular CO sensor, these devices pull double-duty — continually monitoring the environment for heat from combustion, as well as its invisible yet deadly companion, carbon monoxide. Like all Signature Series detectors, these are intelligent device that gather analog information from their heat and CO sensor (if present), converting this data into digital signals. To make an alarm decision, the detector’s on-board microprocessor measures and analyzes sensor readings and compares this information to historical data. Digital filters remove signal patterns that are not typical of fires, thus virtually eliminating unwanted alarms. The SIGA2-HCOS is a fixed temperature heat detector that includes an advanced carbon monoxide sensor and daughterboard. When the electrochemical cell reaches its end of life after approximately six years, the detector signals a trouble condition to the control panel. The sensor/daughterboard module is field-replaceable.	Standard Features Note: Some features described here may not be supported by all control systems. Check your control panel’s Installation and Operation Guide for details. • Fixed temperature or rate-of-rise heat detection with optional carbon monoxide sensor • Field-replaceable carbon monoxide sensor/daughterboard module • Uses existing wiring • Automatic device mapping • Ground fault detection by module • Up to 250 devices per loop • Non-volatile memory • Electronic addressing • Bicolor (green/red) status LED • Standard, relay, fault isolator, and audible mounting bases • 50 foot (15.2 meter) spacing • 15 °F (9 °C) per minute rate-of-rise alarm point (HRS) • 135 °F (57 °C) fixed temperature alarm point (HFS/HRS/HCOS)
Click Here For Datasheet

Field Configurable Horns and Strobes Genesis Series	Overview The Genesis line of fire alarm signals are among the smallest, most compact audible-visible life safety signaling devices in the world. About the size of a deck of playing cards, these devices are designed to blend with any decor. Thanks to patented breakthrough technology, Edwards Genesis strobes do not require bulky specular reflectors and lenses. Instead, an exclusive cavity design conditions light to produce a highly controlled distribution pattern. Significant development efforts employing this new technology have given rise to a new benchmark in strobe performance – FullLight technology. FullLight strobe technology produces a smooth light distribution pattern without the spikes and voids characteristic of specular reflectors. This ensures the entire coverage area receives consistent illumination from the strobe flash. As a result, Genesis strobes with FullLight technology go well beyond the UL-1971 and ULC-S526 light distribution requirements. Genesis strobes and horn-strobes offer selectable candela output by means of a conveniently-located switch on the side of the device. Models are also available that offer fixed 15/75 cd output. The candela output setting remains clearly visible even after final installation, yet it stays locked in place to prevent unauthorized tampering.	Standard Features • Unique low-profile design – The most compact UL-1971/ULC-S526 listed strobe available – Ultra-slim – protrudes less than one inch – Attractive appearance – No visible mounting screws • Four field-configurable options in one device – Select 15, 30, 75, or 110 cd strobe output – Select high (default) or low dB horn output – Select temporal (default) or steady horn output – Select public mode flash rate (default) or private mode temporal flash • Fixed 15/75 cd model available • Easy to install – Fits standard 1-gang electrical boxes – no trim plate needed – Optional trim plate accommodates oversized openings – Pre-assembled with captive hardware – #12 AWG terminals – ideal for long runs or existing wiring • Unparalleled performance – Industry’s most even light distribution – Meets tough synchronizing standards for strobes – Single microprocessor controls both horn and strobe – Independent horn control over a single pair of wires – Highly regulated in-rush current – Multiple frequency tone improves sound penetration – Field-programmable temporal strobe output option
Click Here For Datasheet

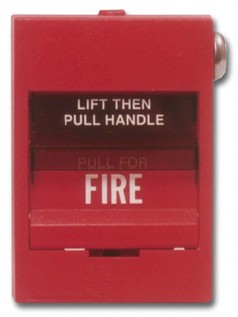

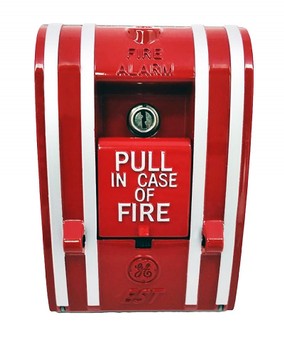

Manual Pull Stations SIGA-270, SIGA-270P, SIGA-278 SIGA-278 SIGA-270 SERIES	The SIGA-270 and SIGA-278 series Manual Pull Stations are part of GE Security’s Signature Series system. The SIGA-270 Fire Alarm Manual Pull Stations feature our very familiar teardrop shape. They are made from die-cast zinc and finished with red epoxy powder-coat paint complemented by aluminum colored stripes and markings. With positive pull-lever operation, one pull on the station handle breaks the glass rod and turns in a positive alarm, ensuring protection plus fool-proof operation. Presignal models (SIGA-270P) are equipped with a general alarm (GA) keyswitch for applications where two stage operation is required. The up-front highly visible glass rod discourages tampering, but is not required for proper operation. GE Security’s double action single stage SIGA-278 station is a contemporary style manual station made from durable red colored lexan. To initiate an alarm, first lift the upper door marked “LIFT THEN PULL HANDLE”, then pull the alarm handle.	Standard Features Note: Some features described here may not be supported by all control systems. Check your control panel’s Installation and Operation Guide for details. · Traditional familiar appearance SIGA-270 models feature our familiar teardrop design with simple positive pull action and sturdy die-cast metal body. · One stage (GA), two stage (pre-signal), and double action models SIGA-270 models are available for one or two stage alarm systems. The single stage double action SIGA-278 features a rugged Lexan housing with keyed reset mechanism. · Break glass operation An up-front visible glass rod on the SIGA-270 discourages tampering. · Intelligent device c/w integral microprocessor All decisions are made at the station allowing lower communication speed while substantially improving control panel response time. Less sensitive to line noise and loop wiring properties; twisted or shielded wire is not required · Non-volatile memory Permanently stores serial number, type of device, and job number. Automatically updates historic information including hours of operation, last maintenance date, number of alarms and troubles, and time and date of last alarm. · Automatic device mapping Each station transmits wiring information to the loop controller regarding its location with respect to other devices on the circuit. · Electronic addressing Permanently stores programmable address; there are no switches or dials to set. Addresses are downloaded from a PC, or the SIGA-PRO Signature Program/Service Tool. · Stand-alone operation The station inputs an alarm even if the loop controller’s polling interrogation stops. · Diagnostic LEDs Status LEDs: flashing GREEN shows normal polling; flashing RED shows alarm state. · Designed for high ambient temperature operation Install in ambient temperatures up to 120 °F (49 °C).
Click Here For Datasheet

ANN-80 80-Character LCD Serial Annunciator	General The ANN-80 annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions. The ANN-80 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply. ANN-80 is red; for white, order ANN-80-W. The ANN-80 displays English-language text of system point information including device type, one, independent point alarm, trouble or supervisory status, as well as any custom alpha labels programmed into the control panel. It includes control switches for remote control of critical system functions. (A keyswitch prevents unauthorized operation of the control switches.) Up to eight ANN-80s may be connected to the ANN-BUS of each FACP. No programming is required, which saves time during system commissioning.	Features • Listed to UL Standard 864, 9th Edition. • Backlit 80-character LCD display (20 characters x 4 lines). • Mimics all display information from the host panel. • Control switches for System Acknowledge, Signal Silence, Drill, and Reset. • Control switches can be independently enabled or disabled at the FACP. • Keyswitch enables/disables control switches and mechanically locks annunciator enclosure • Keyswitch can be enabled or disabled at the FACP. • Enclosure supervised for tamper. • System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence. • Local sounder can be enabled or disabled at the FACP. • ANN-80 connects to the ANN-BUS terminal on the FACP and requires minimal panel programming. • Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels. • Time-and date display field. • Surface mount directly to wall or to single, double, or 4" square electrical box. • Semi-flush mount to single, double, or 4" square electrical box. Use ANN-SB80KIT for angled view mounting. • Can be remotely located up to 6,000 feet (1,800 m) from the panel. • Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs. • May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC). • Up to eight ANN-80s can be connected on the ANN-BUS.
Click Here For Datasheet
