Avaya IP500 Expansion Modules

Main menu:

Products > Voice > Avaya

These modules can be used to add additional ports to an IP system. The number of expansion modules supported depends on the control unit type. Expansion modules, except the WAN3 10/100 module, connect to expansion ports on the rear of the control unit, using a cable supplied with the expansion module. No other cable should be used. The WAN3 10/100 module differs in that it connects via a LAN port on its front to one of the control unit's LAN ports. Each module uses an external power supply unit supplied with the module.

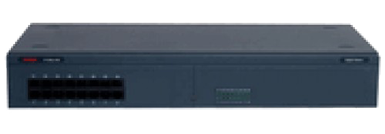

	Avaya IP500 Digital Station 16 · Provides an additional 16 digital station (DS) ports for digital telephones · Supported on IP500 and IP500V2 Control Units · Supports 1400, 5400, 2400, 6400, 4400 Digital Phones
	Avaya IP500 Digital Station 16A The DS16A allows you to add your Nortel M or T series digital phones to IP Office Connections made through an RJ21 connector. This module does not support any Avaya phones. · Provides an additional 16 digital TCM ports for Nortel digital telephones · Digital station ports for use Nortel M7000 and T7000 digital phones · Supported on IP500 V2 running IP Office 7.0 running in IP Office mode or Quick Version mode; IP Office 8.0 or higher running Basic Edition or higher

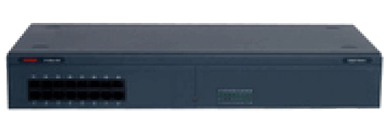

	Avaya IP500 Digital Station 16B The IP500 Digital Station 16B provides 16 additional digital station ports for your Avaya IP Office system. For IP Office 9.0 or higher, the digital station ports can be used as DS or TCM ports. · Provides an additional 16 digital station ports for digital telephones · Added functionality for IP Office 9.0 or higher - Module can support either DS ports or TCM ports, but not both simultaneously · DS ports support Avaya 1400, 2400, 5400, and 9500 series telephones · TCM ports support Avaya/Nortel M7000 and T7000 series telephones
	Avaya IP500 Digital Station 30 The IP500 Digital Station 30 provides 30 additional digital station ports for your Avaya IP Offce system · Provides an additional 30 digital station (DS) ports for digital telephones · Supported by IP Office core software level 2.1(31) minimum · IP403, IP406 V1, IP406 V2, and IP412 IP500 running R4.2 or earlier; Professional Edition is required · IP500 running R5.0 or higher · IP500 V2 control unit running R6.0 or higher · Digital station ports for use with 1400, 2400, and 5400 series digital telephones; also compatible with 9500 series digital phones on IP Office R7.0 or higher · Compatible with 3810 wireless telephone
	Avaya IP500 Digital Station 30A Module This Module provides 30 digital TCM ports for Nortel digital telephones. It connects to your IP Office 500 V2 control unit. It can be wall mounted or rack mounted near the control unit.The DS30A allows you to add your Nortel M or T series digital phones to IP Office Connections made through two RJ21 connectors. This module does not support any Avaya phones. · Supported on IP500 V2 running IP Office 7.0 running in IP Office mode or Quick Version mode · Digital station ports for use Nortel M7000 and T7000 digital phones · Also compatible with Nortel 4100 and 7400 series phones when used with a Digital Mobility Solution

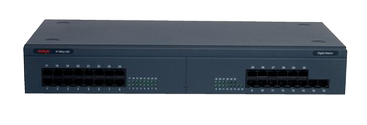

	Avaya IP500 Digital Station 30B Module The IP500 Digital Station 30B provides 30 additional digital station ports for your Avaya IP Office system. For IP Office 9.0 or higher, the digital station ports can be used as DS or TCM ports. · Povides an additional 30 digital station ports for digital telephones · On IP Office 9.0 or higher, both DS ports and TCM ports are supported but not simultaneously · DS ports support Avaya 1400, 2400, 5400, and 9500 series telephones · TCM ports support Avaya/Nortel M7000 and T7000 series telephones
	Avaya IP500 Analog Trunk 16 The IP500 Analog Trunk 16 Module provides an additional 16 analog trunks for your Avaya IP500 control unit. · Provides an additional 16 analog trunks to your IP Office system · Supports both loop start and ground start · Trunk ports 1 and 2 automatically switch to power fail sockets on the rear of the unit during power outage · Supported on IP500 and IP500 V2 control units · On IP Office Partner Version, Norstar Version, and Quick Version, only one IP500 Analog Trunk 16 module is supported.
